Technical Note 222

Counting Algae Cells Using Intrinsic Chlorophyll Fluorescence


Algae are an important model organism in biological research as well as a growing industrial and commercial powerhouse with wide ranging uses such as environmental remediation, fuel production and commercial farming. In all of these applications, an accurate determination of the number of algae present in a sample is an important data point before downstream processes can be run. Due to their small size and tendency to cluster together, getting an accurate estimate of the concentration in a sample can be challenging using traditional methods.

This technical note will demonstrate that the DeNovix CellDrop FL Automated Cell Counter provides accurate counts of many different algal species, using the intrinsic fluorescence from the algae’s chlorophyll.

Materials and Methods

Four different species of algae and culturing kits were obtained (Algae Research Supply. Carlsbad, CA). The two freshwater green algae species, C. Volgaris and C. Reinhardtii and two saltwater species, N. Oculata (a green algae) and P. Cruentum (a red algae), were grown in their corresponding media until they reached an appropriate density for counting. 1 mL aliquots were removed from each culture and for each measurement, 10 uL of algae cells were loaded onto the CellDrop. The samples were then counted in the PI app. All algae species were counted using the following protocol:

Algae Cell Protocol Settings

Table 1: Count Settings

Count ApplicationPI
Chamber Height100 µm
Dilution Factor1
Diameter (min)4 µm
Diameter (max)20 µm
Live Roundness100
Dead Roundness1

Results and Summary

The red fluorescent channel on the CellDrop FL was able to detect the intrinsic chlorophyll fluorescence in all 4 algae species tested. The red channel in the PI app was primarily intended to count dead tissue culture cells and the count data of interest in this application is labeled: dead cell count and dead cells/mL. The mean diameter data may also be an important data point for many applications. For the purpose of algae counting, dead cell count and dead cells/mL can be translated to algae cells counted and algae cells/mL. Any live cells counted are likely extracellular debris and can be ignored for the purpose of this application. The images in Figure 1 below show the counted cells for each of the 4 species.

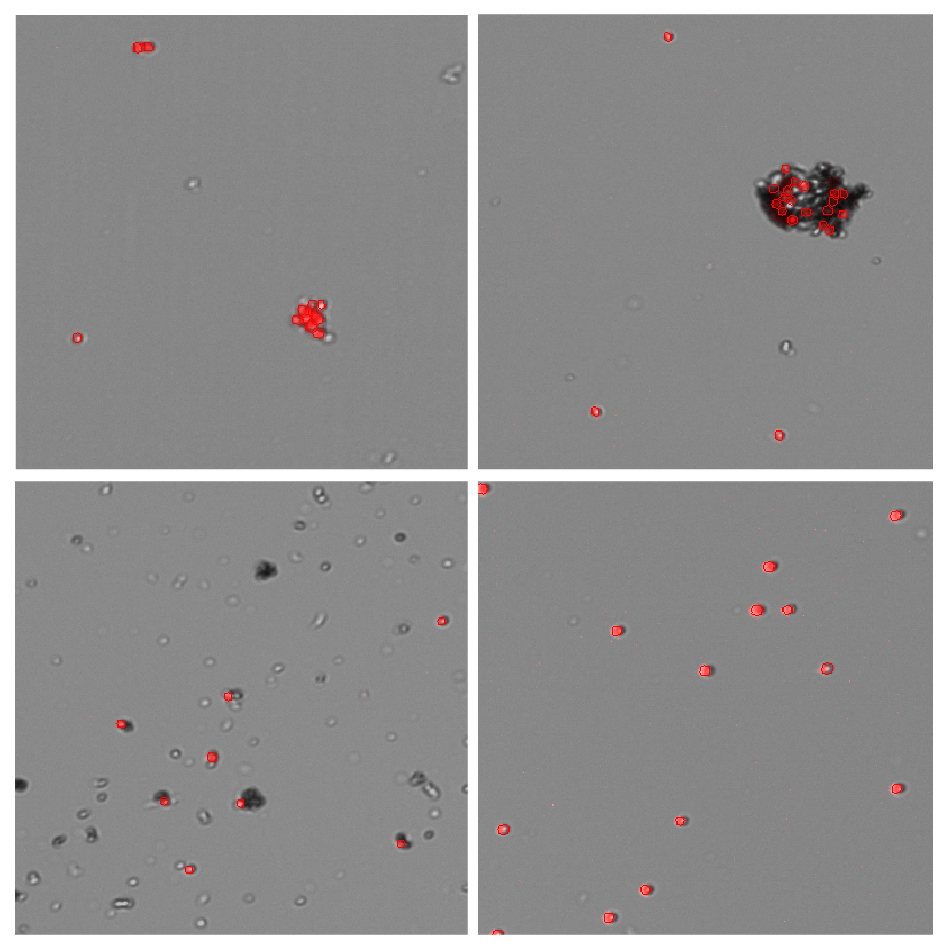

Figure 1. Algae species counted using the CellDrop clockwise from upper left. C. Reinhardtii, P. Cruentum, C. Volgaris and N. Oculata.

The CellDrop’s fluorescent counting algorithms accurately counted only the red fluorescent algae cells containing chlorophyll while ignoring debris as demonstrated well in the P. Cruentum and N. Oculata images. The C. Reinhardtii and P. Cruentum images nicely demonstrate the ability of the CellDrop to accurately count cells in clusters.

Automated counting of algae samples on the CellDrop FL removes operator variability from the process and speeds up the workflow. The CellDrop FL has powerful counting algorithms and customizable count settings to enable accurate counting of a wide variety of cell types, including algae species in multiple workflows.
