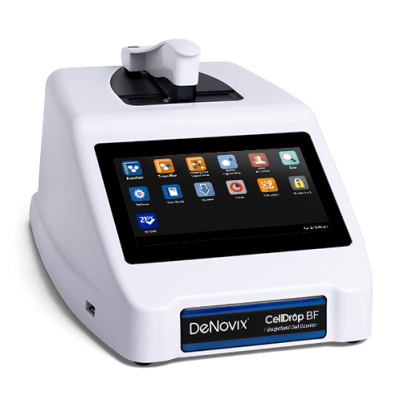

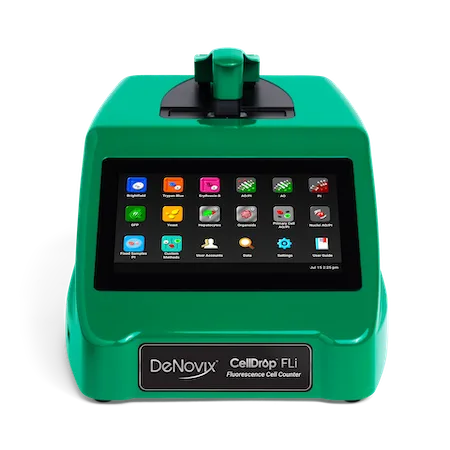

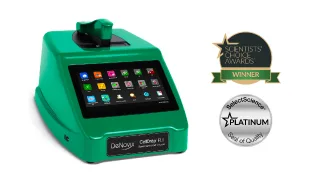

CellDrop™ Automated Cell Counters

Count Cells Without Slides™

CellDrop Automated Cell Counters feature patented DirectPipette™ Technology to eliminate plastic slides and cumbersome hemocytometers from routine cell counting. CellDrop Cell Counters feature dual fluorescence and brightfield optics, variable height sample chamber, and powerful, easy-to-use analysis software. The instruments enable the fastest cell counts, viability assessment, and GFP transfection efficiency measurements across the widest range of cell density, cell type and application. CellDrop is rated five stars by scientists world-wide and was voted Best New Life Science Product of the Year for 2019!



DirectPipette™ Technology

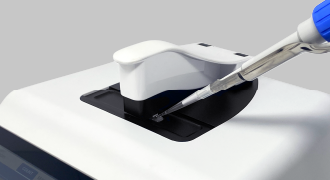

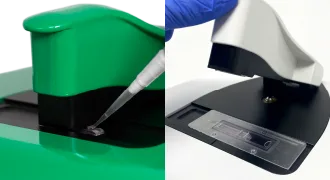

The CellDrop Automated Cell Counter Series brings the familiar Load, Measure & Wipe Clean functionality of microvolume spectrophotometers to cell counting. Traditional plastic slides or glass hemocytometers are replaced by two permanent optical sapphire surfaces. These are positioned parallel to one another by a calibration-free, high-precision mechanism, forming a chamber of precisely defined height. 10µL of cell suspension is pipetted into the chamber, analyzed and simply wiped away with a dry laboratory wipe. The powerful live-view image allows instant verification that cleaning has been successful.

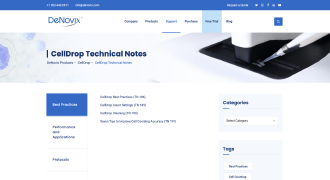

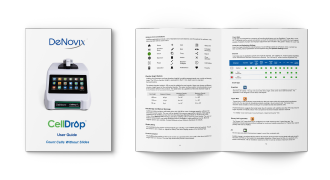

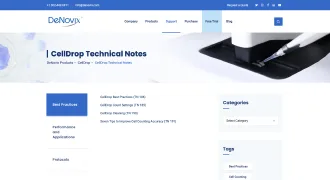

Discover the best practices for the CellDrop Automated Cell Counters here.

DirectPipette

Accurate Across the Widest Range of Cell Size and Density

Using conventional counting methods, samples with high or low cell densities require time consuming dilution or concentration steps. The variable height chamber of the CellDrop Automated Cell Counters enables the most accurate counts over the widest cell densities – 7 x 102 – 2.5 x 107. Chamber height can also be adjusted to accommodate almost any cell with a diameter range of 4 to 400µm.

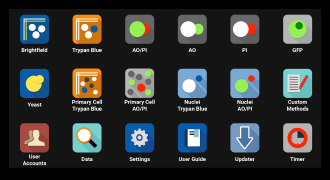

Easy to Learn. Powerful to Use.

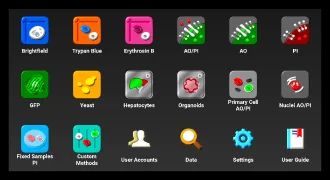

Designed by life scientists, the CellDrop EasyApps® Software exceeds the functionality of high cost cell counters while also delivering the ease-of-use of simpler systems. EasyApps and the high definition, 7″ touchscreen interface provides intuitive cell counting, from sample loading to data exporting in seconds. Pre-installed applications include a range of common applications for one-touch analysis of assays such as Brightfield, Trypan blue, AO/PI, GFP and Yeast and the ability to create custom methods. CellDrop Cell Counters are a flexible workhorse for the busy, multi-user lab.

21 CFR Part 11 Compliance Ready

EasyApps Secure provides an optional suite of software controls that allow regulated GxP facilities to easily add CellDrop to their cell counting workflow (view the compliance statement). The software is fully integrated within the on-board operating system and includes a range of features essential to ensuring compliance, including:

  • Password protected system access
  • Integrated electronic signature controls
  • Comprehensive user account management
  • Secure audit trail recording
  • Advanced data handling and export tools
21CFR compliance ready

Software Features

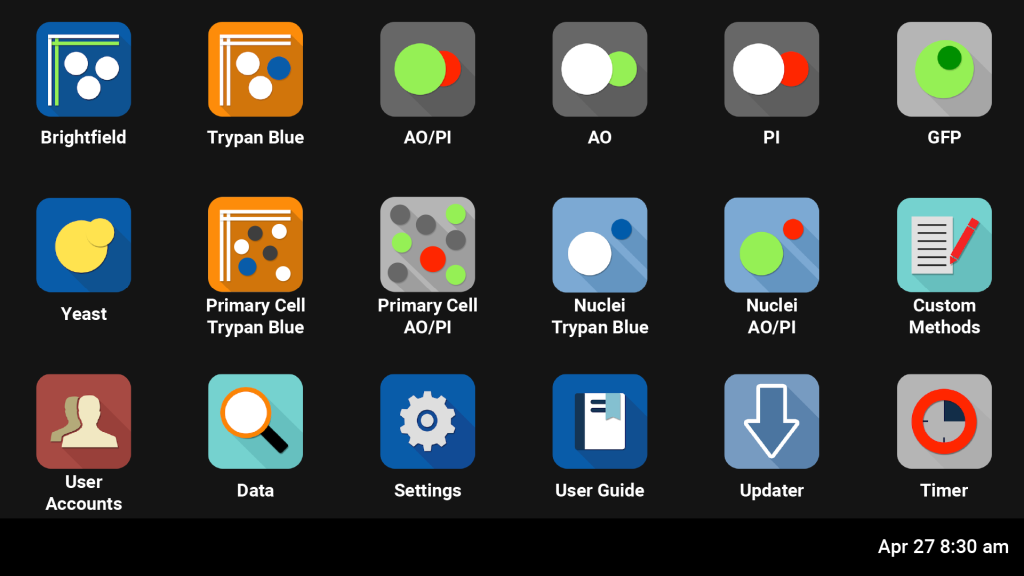

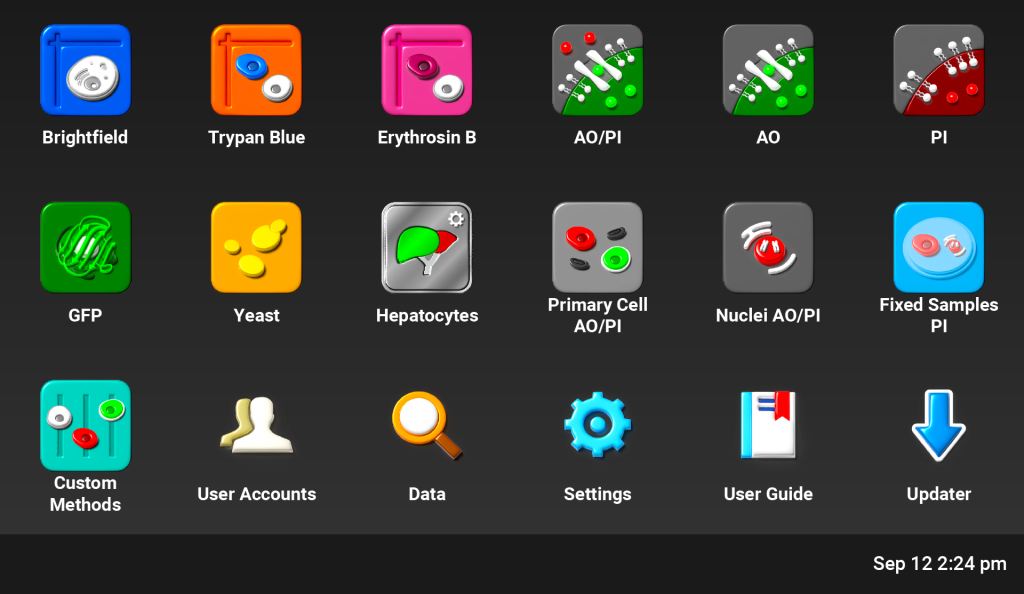

Optimized Measurement Apps

DeNovix CellDrop Series instruments are stand-alone systems equipped with intuitive, easy-to-use apps for automatic cell counting and viability analysis.

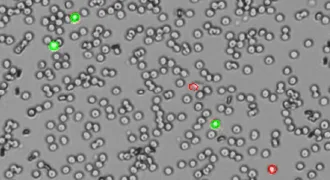

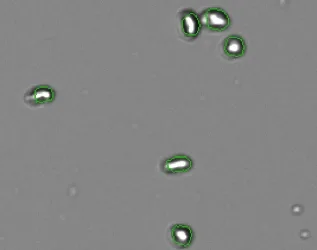

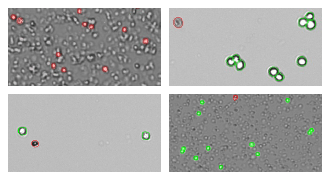

Brightfield

  •   Fast count of Brightfield cell image
  •   Live/dead assessment using Trypan Blue assay
  •   Cells/mL, cell size and % viability reported



Fluorescence

  •   Cell viability analysis using acridine orange (AO) and propidium iodide (PI)
  •   Analyze primary cells in the presence of debris
    • AO for identification of nucleated cells
    • PI for cell viability
    • AO/PI for live/dead
  •   Yeast viability
  •   GFP Transfection Efficiency
  •   Six intuitive results analysis formats
Cell Counting Measurement Applications

Cell Size Gating

Cell Size Histograms allow easy gating for non-target cells or cell debris. Simply drag the slider to set the cell size of interest and view the results in real time. Results are instantly re-calculated excluding all debris or cells that fall outside of the defined size range

GFP Intensity Gating

When using the dedicated GFP Count App, users can gate cells by fluorescence intensity as well as size. The intensity histogram displays the number of cells counted at each GFP intensity level allowing the exclusion of non-GFP expressing cells or low expressing cells to be excluded from analysis.

GFP Intensity Gating

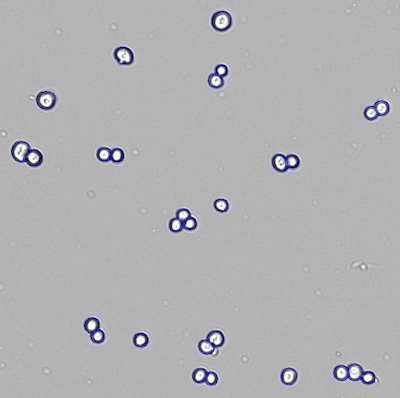

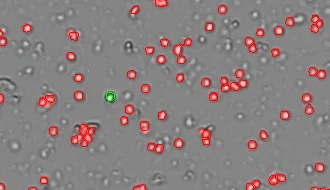

Advanced Declustering Algorithms

Ideally, samples will contain only single cells, but clusters are commonplace with some cell types or at higher cell density. All EasyApps Count Apps use proprietary declustering algorithms developed by DeNovix. Complex samples of regular or irregular cells over a wide range of cell density can be rapidly and accurately analyzed using CellDrop.

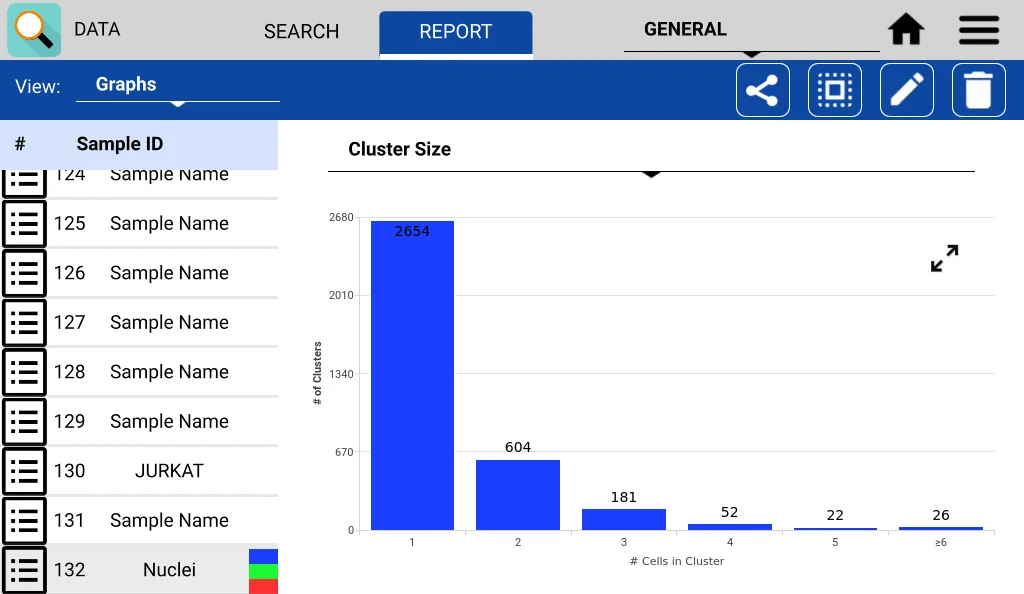

Analysis of cluster size and frequency can be performed and graphically displayed.

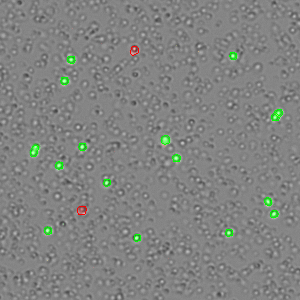

Primary Cell Counting

Primary cell samples are challenging to quantify for traditional cell counting methods. EasyApps makes the analysis simple and accurate with two optimzed Count Apps for fluorescence and brightfield measurement of primary cell samples.

Using the dual fluorescence capabilities of the CellDrop FL, debris and anucleate cells are excluded from analysis while viability of the nucleated cells  is analyzed.

pbmcs

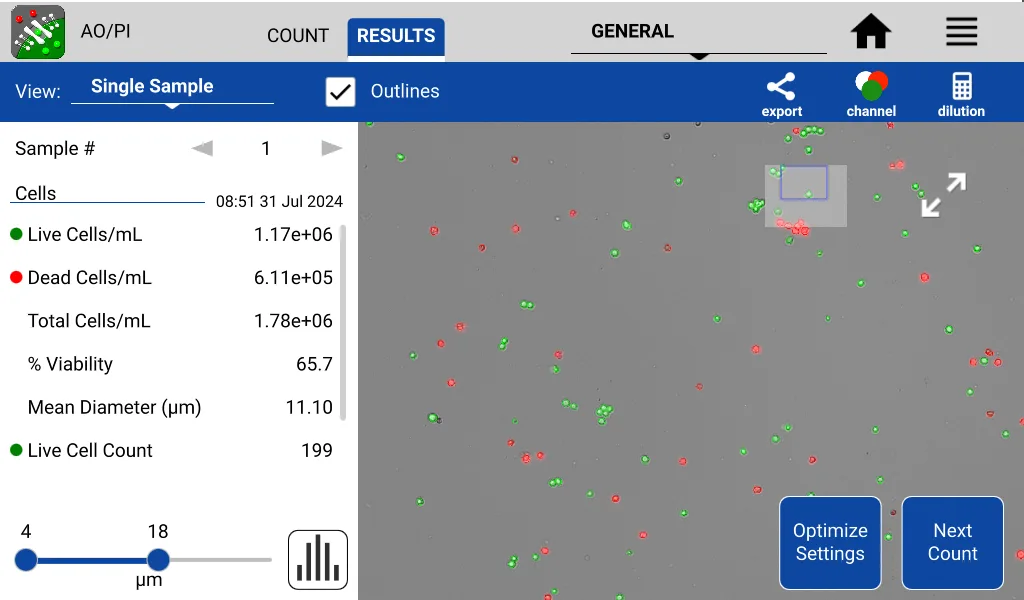

Results

EasyApps automatically calculates a wide range of application-specific metrics for each cell sample. Data is clearly displayed on-screen and auto-saved to a large onboard hard drive. Metrics include:

  • Total / Live / Dead Cell Count
  • % Viability
  • Cell Diameter
  • Total / Live / Dead Cell Per mL
Cell Counting Results

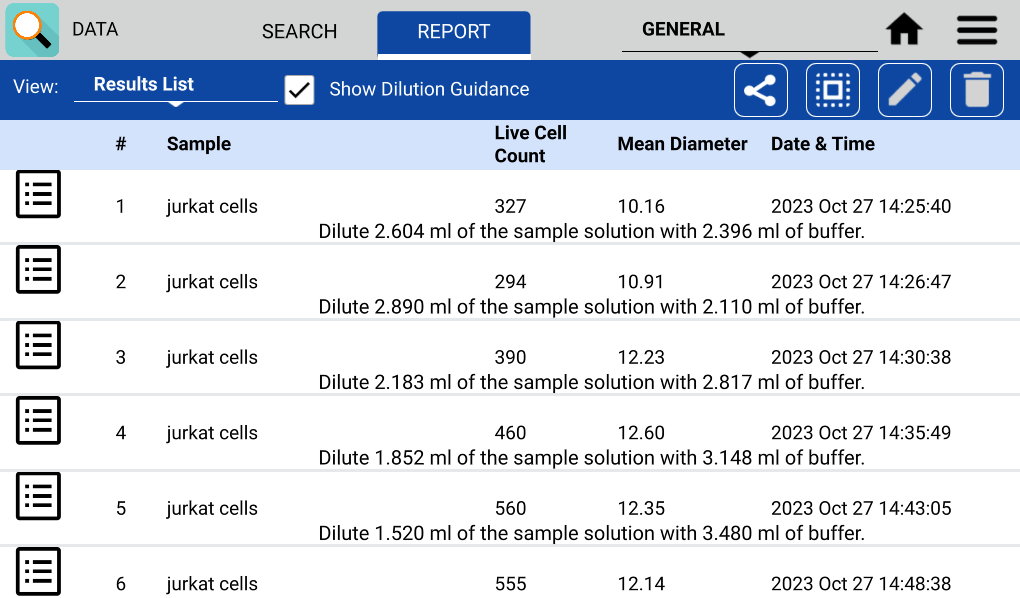

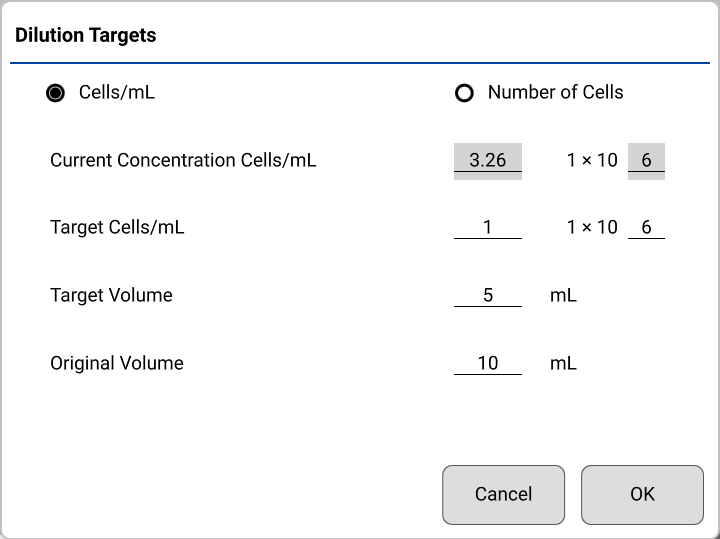

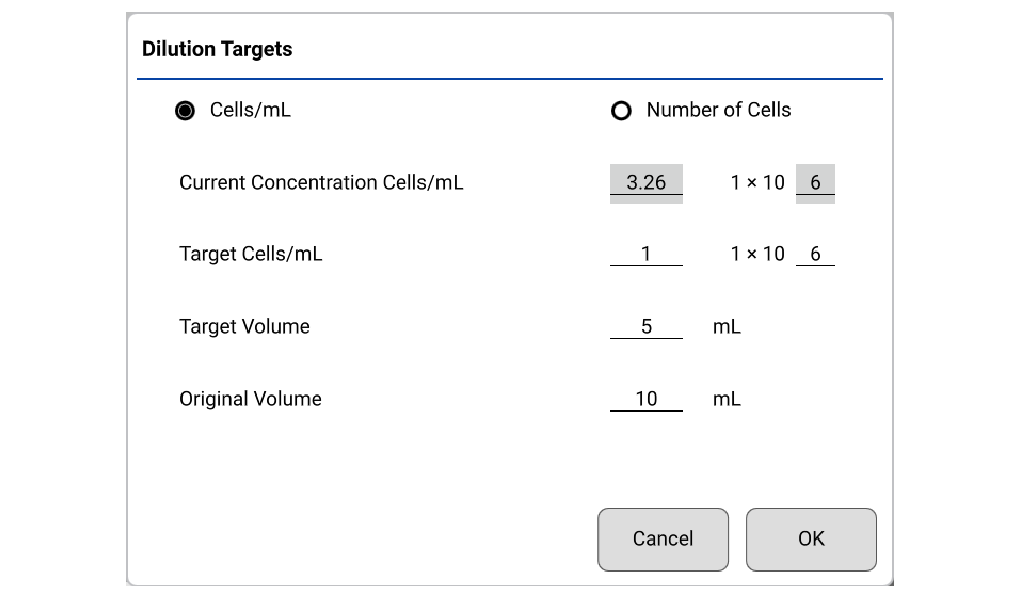

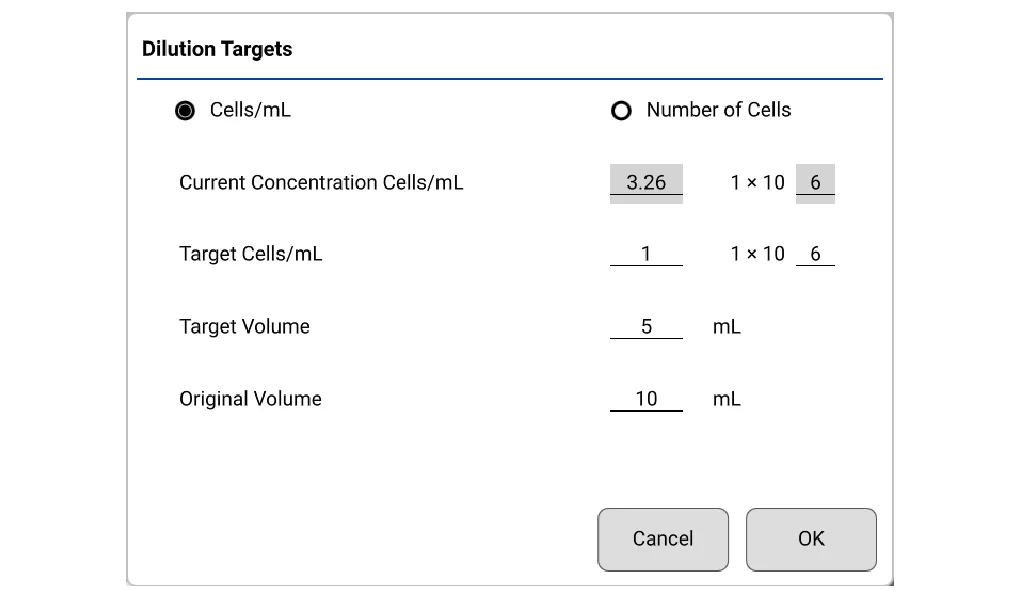

Dilution Calculator

Define a target cell number or density and culture volume and the dilution calculator will automatically calculate dilution volumes of cell culture and buffer based on each cell count. Dilution guidance is displayed prominently on-screen and printed reports for convenient sample processing.

Cell culture dilution calculations

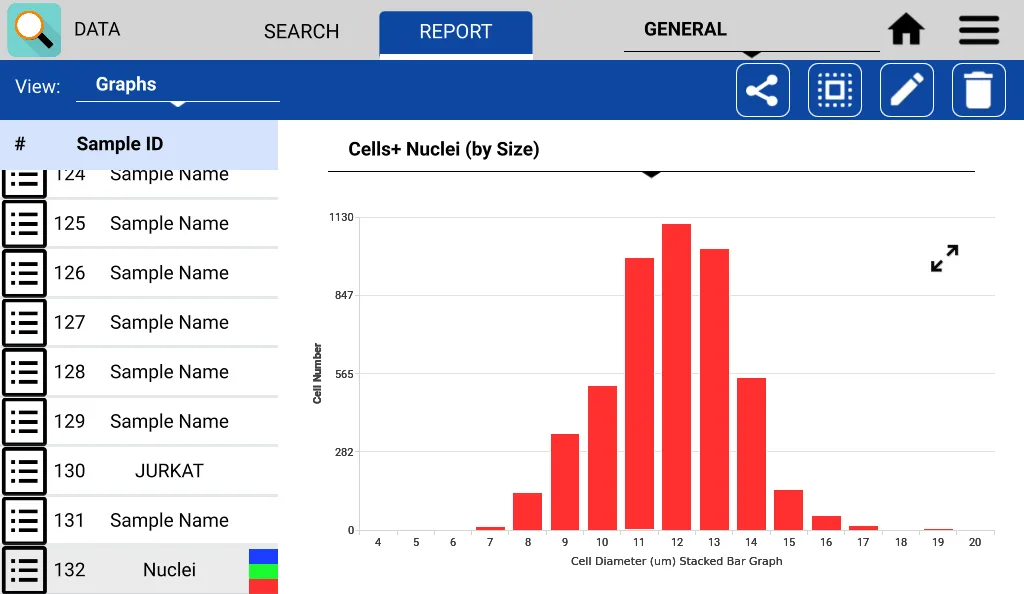

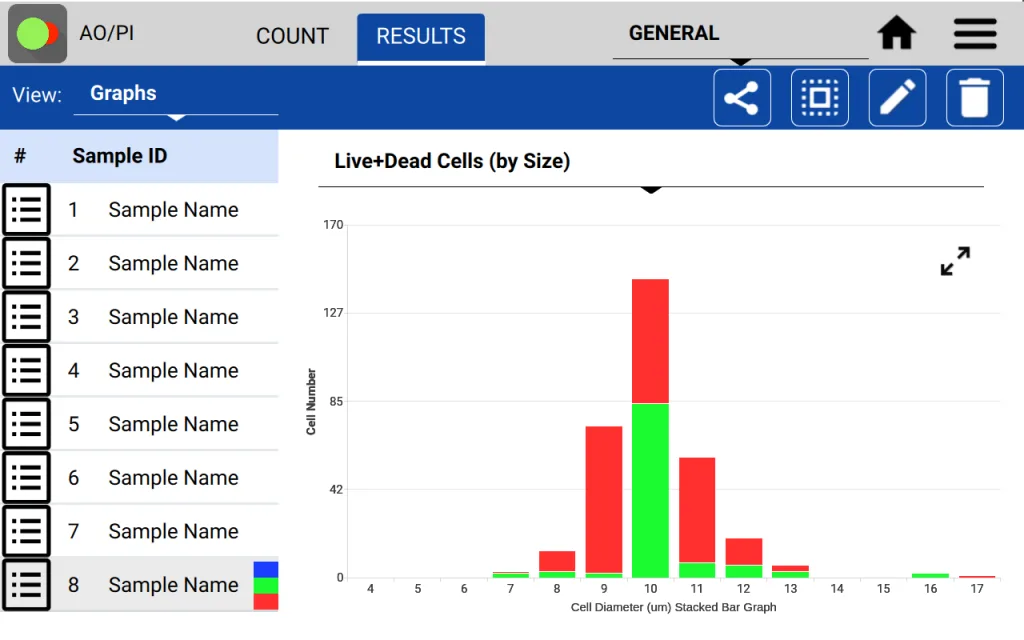

Graphical Data Display

A wide range of graph types are available to gain additional sample insight. Overlay multiple samples from the same session or from the data archive for powerful data visualization.

  • Total / Live / Dead Cells
  • %Viability
  • Cluster Size
  • Live and Dead Cells (by size)
  • % GFP Transfection Efficiency
graphical display of cell counts

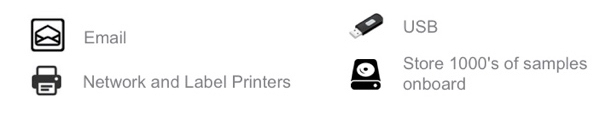

Exporting

Simply and securely connect CellDrop to your network by Wifi or Ethernet to enable data exporting by email, or print reports to network or label printers. Each measurement is automatically saved to a large onboard memory enabling storage and retrieval of thousands of samples.

Cell Count Report

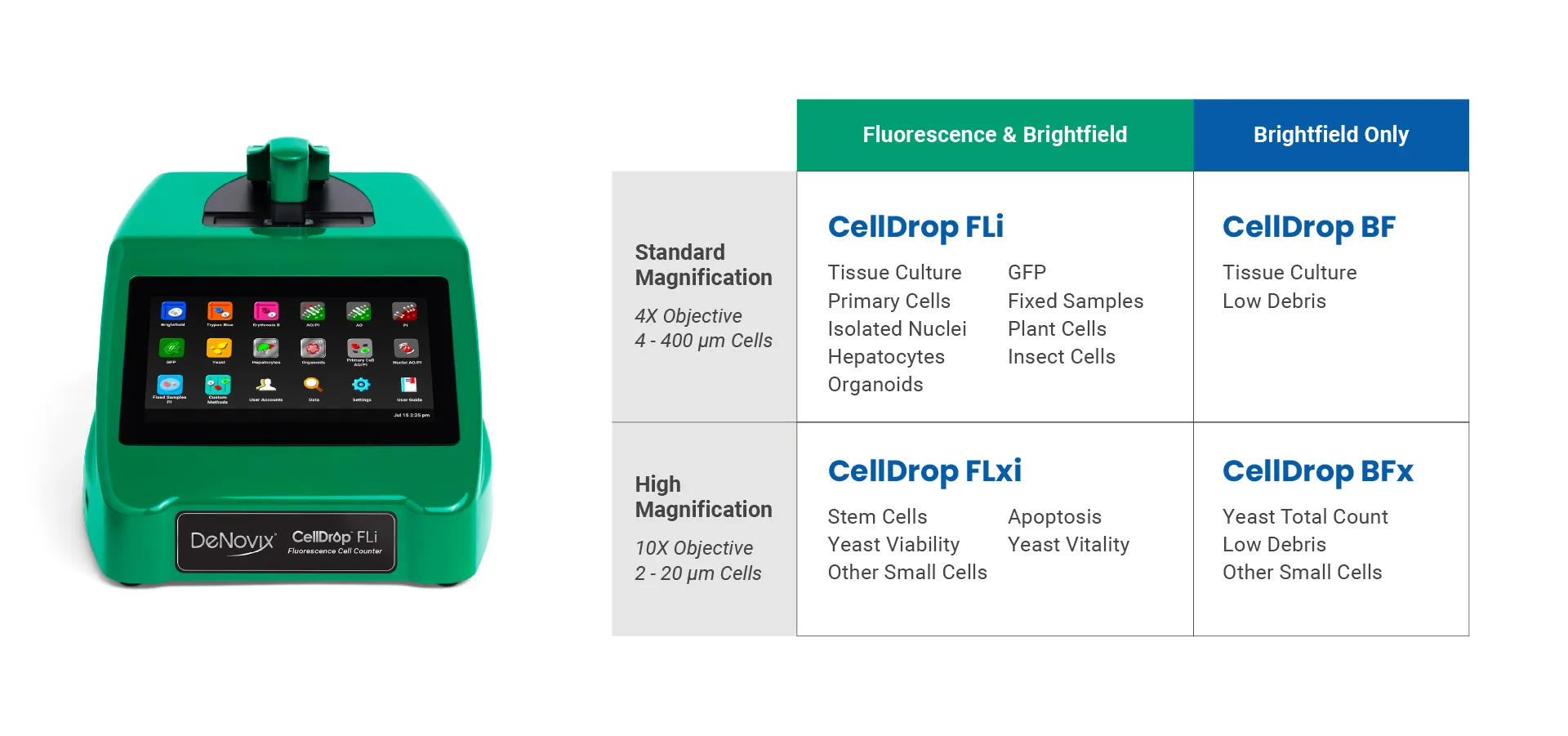

Models

CellDrop is available in Dual Fluorescence and Brightfield (CellDrop FL) or Brightfield only (CellDrop BF) models, each with the option of Unlimited Counts or Pay-As-You-Go.

Part Number Description
CellDrop FL-UNLTD 2 Channel Fluorescence Cell Counter with Unlimited Counts
CellDrop FL-PAYG 2 Channel Fluorescence Cell Counter- Pay-As-You-Go
CellDrop BF-UNLTD Brightfield Cell Counter with Unlimited Counts
CellDrop BF-PAYG Brightfield Cell Counter- Pay-As-You-Go

Purchase Options



DeNovix offer customers the ability to choose between two purchase options that best meet their needs.  The two options are the Unlimited (UNLTD) and the Pay-As-You-Go (PAYG).  Below are the details for each option.





Unlimited (UNLTD)

  • Customer pays an upfront price and instrument is “unlocked”
  • Unlimited number of measurements can be made at no additional cost



Pay-As-You-Go (PAYG)

  • Unlike other cell counters on the market, the CellDrop does not require a disposable slide to operate
  • Customer pays a lower upfront price and then purchases a Count Code to enable a defined number of measurements
  • The hardware price and the count price for the PAYG option is similar to other cell counters on the market
  • Counts are purchased from DeNovix (or its distributors) and entered as a 20-digit code into the instrument software
  • Each code is instrument-specific
  • PAYG instruments can be upgraded to UNLTD at any time; 50% of the count codes purchased will count as credit towards the upgrade price
  • Count codes can be applied to a single user account or shared across specified user accounts
  • This option is the ideal solution for labs with smaller capital budgets or lower sample throughput looking to acquire high performance and flexible instrumentation
  • The number of measurements remaining can be viewed at any time in the Count Code App; users are also alerted when the counts remaining drops below a user-settable threshold

Specifications



Dynamic Range 7 x 102 – 2.5 x 107 cells/ml
Cell Size Range 4 – 400 µm
Sample Volume 5.0 µL @50 µm chamber height
10 µL @100 µm chamber height (standard)
40 µL @400 µm chamber height
Measurement Speed Brightfield- 3 seconds @1 x 106 cell/mL
Dual Fluorescence- 8.5 seconds @1 x 106 cell/mL
Optical Modes CellDrop FL – Dual Fluorescence, Single Fluorescence, Brightfield, Fluorescence + Brightfield
CellDrop BF – Brightfield only
Sample Surfaces Optical Sapphire
Brightfield Illumination LED 530 nm
Fluorescence Illumination LED 470 nm
Emission Filters 530 nm +/- 25 nm
645nm +/- 37 nm
Gesture Recognition Multipoint touch, swipe, pinch
Display 7″, 1280 x 800 high definition color display
Glove Compatibility All common laboratory gloves
Camera CellDrop FL – Basler acA2040-55µm
CellDrop BF – Basler daA2500- 14µm
Images 2048 x 800 px (3.15 MB) with overlay capabilities
Focus User-controlled onscreen coarse and fine adjustment
Detector CellDrop FL – Sony IMX265
CellDrop BF – ON Semiconductor MT9P031
Processor Nvidia Tegra K1 with Quad-core ARM Cortex-A15
Connectivity WiFi, Ethernet, HDMi, USB
Footprint (LxWxH) 37 x 21 x 18 cm
Weight 8 Kg
Operating Voltage 12 VDC
Approvals UL/CSA, CE, FCC, Japan CAB
Manufacturer Location USA
Warranty 2 Years
Colors Arctic White
Internal Storage 120 GB solid state drive – upgradable to 1 TB
Accessories Barcode reader, keyboard, mouse, 20 µL pipette
Patents US 10,302,568 and 10,598,598
Japan 6579475
