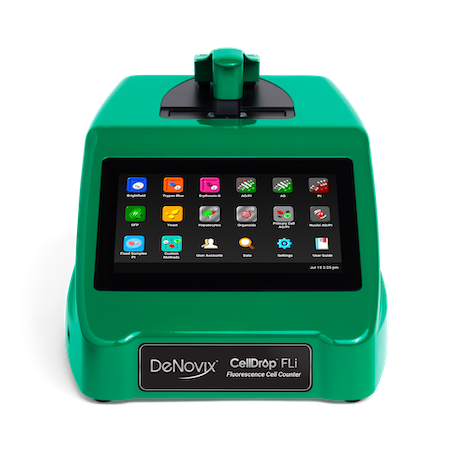

CellDrop™ Specifications

Dynamic Range 7 x 102   to   4 x 107 cells/ml
Cell Size Range 4 to 400 µm
Sample Volume 3.0 µL @30 µm chamber height
10 µL @100
µm chamber height (standard)
40 µL @400 µm chamber height
Measurement Speed Brightfield- 3 seconds @1 x 106 cell/ml
Dual Fluorescence- 8.5 seconds @1 x 106 cell/ml
Optical Modes CellDrop FL – Dual Fluorescence, Single Fluorescence, Brightfield, Fluorescence + Brightfield
CellDrop BF – Brightfield only
Sample Surfaces Optical Sapphire
Brightfield Illumination LED 530 nm
Fluorescence Illumination LED 470 nm
Emission Filters 530 nm +/- 25 nm
645nm +/- 37 nm
Gesture Recognition Multipoint touch, swipe, pinch
Display 7″, 1280 x 800 high definition color display
Glove Compatibility All common laboratory gloves
Camera CellDrop FL – Basler acA2040-55µm
CellDrop BF – Basler daA2500- 14µm
Images 2048 x 800 px (3.15 MB) with overlay capabilities
Focus User-controlled onscreen coarse and fine adjustment
Detector CellDrop FL – Sony IMX265
CellDrop BF – ON Semiconductor MT9P031
Processor Nvidia Tegra K1 with Quad-core ARM Cortex-A15
Connectivity WiFi, Ethernet, HDMi, USB
Footprint (LxWxH) 37 x 21 x 18 cm
Weight 8 Kg
Operating Voltage 12 VDC
Approvals UL/CSA, CE, FCC, Japan CAB
Manufacturer Location USA
Warranty 2 Years
Colors Arctic White
Internal Storage 60 GB solid state drive – upgradable to 1 TB
Accessories Label Printer, barcode reader, keyboard, mouse, 20 µL pipette
